Product Overview

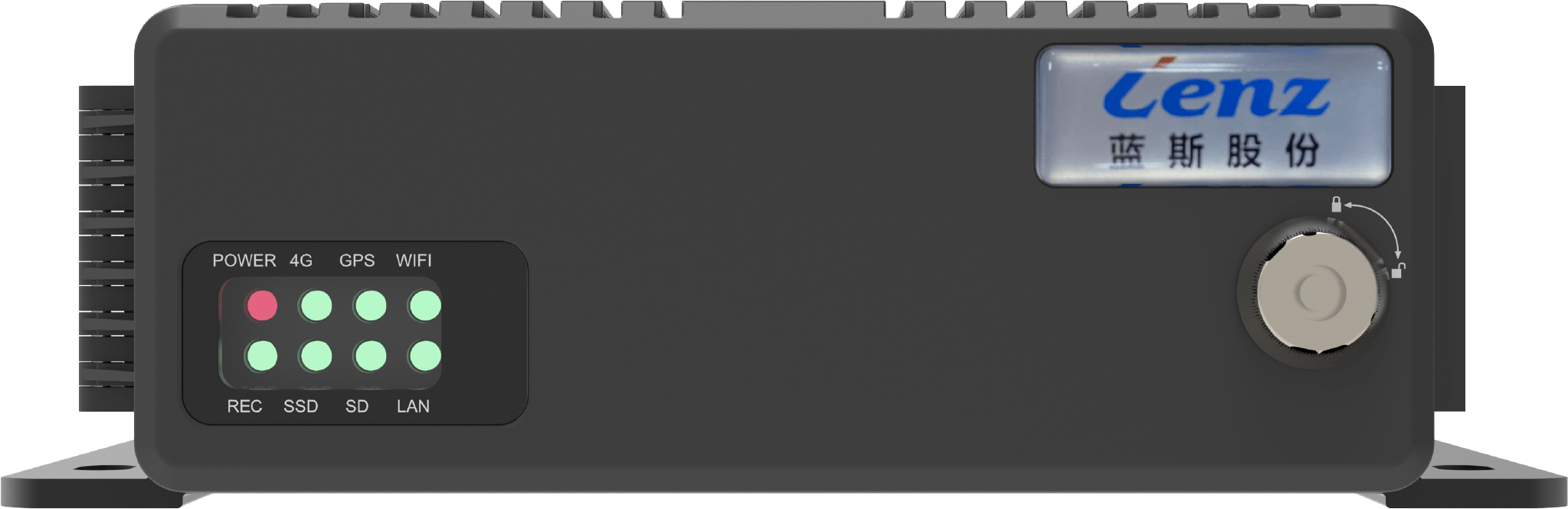

The Xiamen Lanshi Communication Co., Ltd. introduces the LZH200, an advanced in-vehicle full HD public bus AI terminal, which integrates high-definition video monitoring, AI intelligent analysis, data storage, and vehicle status monitoring. Designed specifically for public transportation systems, the LZH200 not only supports multi-channel high-definition video input but also features powerful AI algorithm functions, enabling real-time analysis of driving behavior to enhance driving safety. Additionally, its robust and durable design, along with a wide temperature operating range, ensures stable operation under various harsh conditions, making it an ideal choice for the intelligent upgrading of the public transportation industry.

Main Product Features

High-definition video surveillance:Supports 4-channel AHD 1080P high-definition video input and 1-channel IPC network video input, offering all-around, zero死角 vehicle interior and exterior surveillance, ensuring driving safety.

AI Intelligent Analysis:Integrating three major AI algorithms, including ADAS (Advanced Driver-Assistance System), DMS (Driver State Monitoring System), and BSD (Blind Spot Detection System), effectively prevents accidents and enhances driving safety.

High-capacity data storage:Supports 1*4T 2.5-inch SSD storage and can be expanded with 1*256G SD card storage, meeting long-term, large data storage needs.

Precise positioning:Utilizing the BeiDou/GPS dual-mode positioning technology, it offers high-precision vehicle location information for convenient scheduling management and track tracing.

Rich Interface:Equipped with multiple communication interfaces including 2-way RS232, 1-way RS485, 2-way CAN, and 1-way USB 2.0A, facilitating data interaction with other vehicle systems.

Wide temperature working range:Operating temperature range from -30°C to +70°C, adaptable to various extreme climate conditions, ensuring stable equipment operation.

Durable and robust:A combination of metal/plastic materials is used, ensuring the equipment's strength while reducing weight for easy installation and maintenance.

Product Detailed Parameters

Brand:Lance Communication

Product Model:LZH200

Origin:China

Video Parameters:

• 4-channel AHD 1080P high-definition video input
• 1st IPC Network Video Input

Audio Function:

• 6-channel audio input, supports high-quality audio recording

Data Storage:

• Supports 1*4T 2.5-inch solid-state drive storage
• Supports 1*256G SD card storage extension

Positioning System:

• Beidou/GPS dual-mode positioning, providing high-precision location information

Physical Interface:

• 2-way RS232 serial port
• Channel 1 RS485 serial port
• 2-channel CAN bus interface
• 1-way USB 2.0A interface

Operating Temperature:-30°C ~ +70°C, suitable for various extreme environments

AI Algorithm Function:

• Supports 1-lane ADAS features, including forward collision warning and lane departure warning.
• Supports 1-channel DMS function, monitoring driver fatigue and distraction states
• Supports 1BSD function, monitors vehicle blind spots, prevents collision accidents

Vehicle mileage recorder function:

• Record vehicle speed, brake, turn signal status, and mileage
• Support local and remote vehicle driving data collection
• Supports data collection of vehicle operation through CAN bus

Part Materials:Metal/plastic combination, sturdy, durable and lightweight

Application Scope

LZH200 Car-mounted Full HD Bus AI Terminal is widely used in public transportation systems, long-distance passenger transport, tourist buses, and other public transport fields. Through high-definition video surveillance and AI intelligent analysis, it effectively enhances driving safety and reduces the risk of accidents. At the same time, its large-capacity data storage and precise positioning functions facilitate vehicle scheduling and management as well as trackback, improving operational efficiency. In addition, LZH200 is also suitable for other in-vehicle scenarios requiring high-definition video surveillance and AI analysis, such as logistics transportation and school bus management.

Frequently Asked Questions (FAQ page)

Q1: What video input formats does LZH200 support?

A1: LZH200 supports 4-channel AHD1080P high-definition video input and 1-channel IPC network video input, meeting various high-definition video surveillance needs.

Q2: What are the AI algorithm functions included in LZH200?

A2: LZH200's AI algorithm functions include ADAS (Advanced Driver-Assistance System), DMS (Driver State Monitoring System), and BSD (Blind Spot Detection System), effectively preventing accidents and enhancing driving safety.

Q3: What is the data storage capacity of LZH200? Does it support expansion?

A3: LZH200 supports 1*4T 2.5-inch solid-state hard drive storage and can be expanded with 1*256G SD card storage, meeting long-term, large data storage needs.

Q4: What is the positioning accuracy of LZH200? Which positioning systems does it support?

A4: LZH200 adopts Beidou/GPS dual-mode positioning technology, providing high-precision vehicle location information, with high positioning accuracy, suitable for various scenarios requiring precise positioning.

Q5: What is the operating temperature range of LZH200? Can it adapt to extreme environments?

A5: The operating temperature range of LZH200 covers from -30°C to +70°C, capable of adapting to various extreme climatic conditions to ensure stable equipment operation.

Q6: What are the functions of the LZH200 driving recorder?

A6: The LZH200's行车记录仪功能 includes recording vehicle speed, brake, turn signal status, and mileage, supports local and remote collection of vehicle driving data, and data collection through the CAN bus for convenient vehicle management and accident traceability.

Q7: What are the physical interfaces of LZH200? Are they convenient for connecting with other systems?

A7: LZH200 is equipped with various communication interfaces including 2-way RS232, 1-way RS485, 2-way CAN, and 1-way USB 2.0A, facilitating data interaction and connection with other vehicle systems.

Q8: What is the material of LZH200? Is it sturdy and durable?

A8: LZH200 is made with a combination of metal/plastic materials, ensuring the device's strength while reducing weight, making it easy to install and maintain. It is also sturdy and durable, capable of adapting to various harsh environments.
